tarm 13

The tarm 13 is a compact and robust powerhouse. It combines
high performance with precision. The built-in ShowNET for controlling DMX, ArtNET, LAN, ILDA and ILDA Streaming etc. offers a wide range of applications. The tarm 13 is the
perfect companion for any lighting designer. It is also ideal for rental companies, professional shows, installation projects, festivals, large stages, mapping projections and graphic installation projects.

13'000 mW guaranteed power
Complex graphics capable - 45kpps @ 8° ILDA scanners – upgradable to 60kpps
Extremely sharp intense beams - low divergence of <0.8 mrad
Integrated powerful mainboard with advanced configuration features (geo-correction, zone setup, color balancing, etc.) and DAC feature

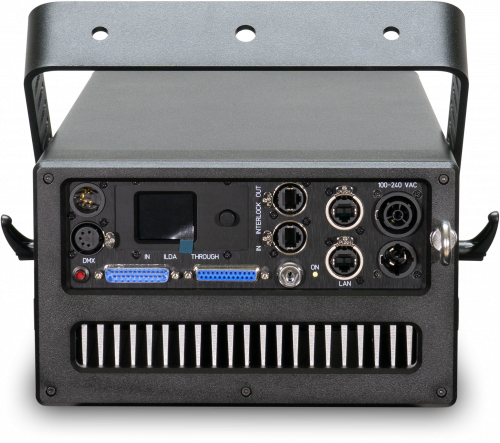

Integrated network switch for linking the control signal
Control screen for convenient mode selection
Rugged tour-grade compact housing
Laser Artists' choice
Lighting Designers' choice
incl. waterproof flightcase

ShowNET mainboard as standard:

Various control options: ILDA, Professional DMX (two modes), Professional Art-Net (two modes), Stand-Alone Operation, Master-Slave, ILDA Streaming Receiver, LAN (Computer control, integrated DAC)
Create custom content, store it inside the laser and play it back in different modes
Free laser show control software included

STAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.

DMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.

ArtNET Control mode

MASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.

LAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)

ILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.

ILDA Streaming

SHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.

SHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.

AVAILABLE MODIFICATIONS:

PANGOLIN FB4:
Order your laser standard equipped with the Pangolin FB4 DAC. The FB4 substitutes the ShowNET mainboard, so features are limited to the ones of the FB4.
With the FB4 integrated, the laser can be directly controlled via Pangolin software.

CT-6210H Laseranimation Turboscan driver

SCANNER UPGRADE CT-6210H:
Upgrade the scanner performance with the powerful CT-6210H Scanners with Laseranimation Turboscan drivers.

GOBO WHEEL:
Add awesome glass effects and gratings to the laser show with this additional effects wheel.

Built with the latest RTI Semiconductor Laser Module technology!

The tarm 13 is made in Germany and is a compact show laser system that is ideally suited for top professional laser show applications of any kind. It is built with the latest RTI semiconductor laser modules that are specially designed in a way to keep spot size as well as divergence equal on both x- and y-axis. This is significantly advantageous over solutions with a very good divergence on one axis, but a bad divergence on the other. The laser modules inside the tarm 13 are different - the spot size and shape is equal for all colors and on both axis!

The beam specifications of the new tarm 13 are given with only ca. 5.0 mm diameter and <0.8 mrad divergence - which applies to both axis. The extremely small beam diameter allows for the use of very small 4.5 mm mirrors, which results in reduced inertia and thus very good scanning performance.

KEY FEATURES

13 W total RGB power in a small housing of only 441/260/153 mm
super small spot of ca. 5.0 mm for reduced inertia and thus fast scanning
All wavelengths matched in divergence and beam size
extremely low divergence of <0.8 mrad - on both axis!
Integrated network switch for linking the control signal
Compact form factor, module size equal to the Coherent OPSL modules
extremely lightweight unit with only 17.5 kg
Different, brighter wavelengths for increased visibility
brilliant colors and great color fading
Laser modules do not come out of internal alignment
Maintenance free laser modules
High quality product, Made in Germany
Great scanning performance suitable for projections as well as for beams

The tarm 13 impresses with a guaranteed RGB output power of 13'000 mW. Great visibility is achieved with the new RTI Semiconductor Laser modules (RSL) with special wavelengths for increased visibility: 4'000 mW / 637 nm for a very bright red combined with 5'800 mW / 525 nm green and a strong blue laser module with 5'000 mW / 455 nm. The 525nm green provides a warmer green tone than the 520nm diodes and has increased visibility.
These new RSL modules with their extremely low divergence and homogenous beam shape make the tarm 13 a top professional laser system. The extremely small beam diameter of only ca. 5.0 mm allows for the use of small scanner mirrors which leads to reduced inertia and higher scan speeds. This is especially important, as the tarm 13 can be used for any kind of laser show application: Super sharp beams and vivid colors for large scale concerts and festivals but also a perfectly matched beam for crisp graphics.

The RTI Semiconductor Laser modules are maintenance free and do not come out of internal alignment.
The standard scanners can be run at a maximum of 45kpps @ 8° ILDA and a maximum scan angle of 50°. CT-6210 scanners with LAS Turboscan drivers are available as option and provide even higher scan speeds with up to 60kpps at 8° ILDA .

The powerful tarm 13 is suitable for indoor and outdoor show laser applications at concerts, festivals and other huge events. Demanding graphics projections or projections over long distances are possible without any problems, due to the extremely good divergence.

INCLUDING SHOWNET LASER MAINBOARD

The tarm 13 is delivered with a ShowNET laser mainboard as standard. This means it has a multitude of control features already built-in: Control via DMX or ArtNET, just like a normal lighting fixture, are possible as well as computer control via ILDA or LAN. Of course the laser can be run in stand alone operation, too. The contents for playback (for DMX, ArtNet, Stand-Alone, etc.) can be fully customized. As the ShowNET laser mainboard comes with a full license of the Showeditor software, it is easy to create custom content for the built-in memory or even directly control the laser with a computer - either live or for creation an playback of complete laser shows.

If ILDA shall be used as control option, like from an external Lasergraph DSP, the internal ShowNET mainboard can also be used as receiver for an ILDA streaming signal - so the externbal ILDA signal can be feeded to an external ShowNET device and this sends the direct control to the tarm 13 via ILDA Streaming - so no long ILDA cables are required any more, even with ILDA based control systems.

> More details

Optional control options (modification required!):

Optional control options require modifications to the general laser setup. Other operation modes or compatibilities may get lost.

Quickshow

Beyond

> More details

tarm 13 laser beam and explanatory image 5

tarm 13 laser beam and explanatory image 6

> More details

Guaranteed Power at aperture

13'000 mW

Power Red

4'000 mW / 637 nm

Power Green

5'800 mW / 525 nm

Power Blue

5'000 mW / 455 nm

Beam Specifications*

ca. 5.0 mm / <0.8 mrad

Scanner

45kpps @ 8° ILDA; optional CT-6210 with LAS Turboscan: 60 kpps@8° ILDA, max. 60°

Max. Scan Angle

50°

Laser Source

RSL modules

Laser Class

Operation Modes

ILDA, DMX, LAN, ArtNet, integrated SD card, stand-alone, master-slave; integrated intelligent ShowNET laser mainboard with display

Basic Patterns

over 120 (layers, tunnels, fences, waves, etc.)

Accessories

Incl. waterproof flightcase, rain cover, power cable, manual, key, interlock connector, full version Showeditor software license included

Power Supply

85 V - 250 V / AC

Power Consumption

350 W

Dimensions

441/260/153 mm

Weight

17.5 kg

EAN / MPN

7640144996529

Download Technical Datasheet

*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
