Laserworld EL-400RGB S
- Typical power 400 mW
- 7 colors including white
- Beams, waves & tunnel laser effects
- Sound-to-light mode
- DMX programmable
- 15kpps @ 8°
- Typical power 400 mW
- 7 colors including white
- Beams, waves & tunnel laser effects
- Sound-to-light mode
Bestens geeignet für
Architektur, Werbung
Kunst und Illumination
Mobile DJs, Hochzeiten
LASERWORLD
Laserworld EL-400RGB S
The Laserworld EL-400RGB S is a RGB show laser system with the 15kpps @ 8° and the total output power of up to 400 mW.
The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532 nm and the royal-blue laser module with a wavelength of 445 nm ensure beautiful colors and bright beams. These beams have a diameter of about ca. 3 mm and a beam divergence of 2 mrad.The laser system has a 15kpps @ 8° for creating different patterns. Effects can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated microphone can be adjusted.

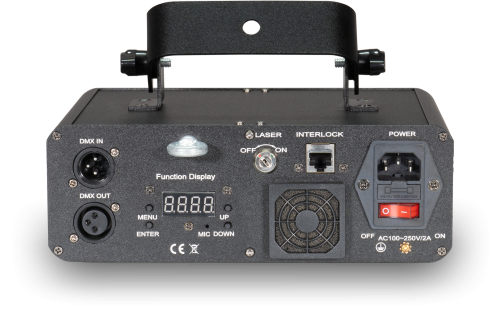

There is an interlock connector for E-Stop switch as well as a key switch at the rear side of this very compact device.
The Laserworld EL-400RGB S is a innovative solution for first-time and hobby users, as well as for mobile DJs and it is often used in bars, small to medium sized clubs, at private parties or for home use.
The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532 nm and the royal-blue laser module with a wavelength of 445 nm ensure beautiful colors and bright beams. These beams have a diameter of about ca. 3 mm and a beam divergence of 2 mrad.The laser system has a 15kpps @ 8° for creating different patterns. Effects can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated microphone can be adjusted.
There is an interlock connector for E-Stop switch as well as a key switch at the rear side of this very compact device.
The Laserworld EL-400RGB S is a innovative solution for first-time and hobby users, as well as for mobile DJs and it is often used in bars, small to medium sized clubs, at private parties or for home use.
SOUND-TO-LIGHT MODE:
Let the beat of the music control the laser automatically
Let the beat of the music control the laser automatically
STAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
The laser can be controlled with a standard DMX controller or DMX software.
MASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
For Dealers and Distribution Partners
See all prices and availability.
Subscribe to newsletter
Stay up to date with the latest news.
Technical Details
| Total Power | 400 mW |
| Power Red | 120 mW / 650 nm |
| Power Green | 100 mW / 532 nm |
| Power Blue | 180 mW / 445 nm |
| Beam Specifications | ca. 3 mm / 2 mrad |
| Scanner | 15kpps @ 8° |
| Laser Source | Diode, DPSS |
| Laser Class | 3B |
| Operation Modes | auto-mode, DMX, sound to light |
| Power Supply | 85 V - 250 V AC |
| Power Consumption | 30 W |
| Dimensions | 255 x 245 x 100 mm |
| Weight | 3.0 kg |
| EAN / MPN | 7640144992330 |
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
