Laserworld DS-3000RGB FB4 MK5
- 3'000 mW guaranteed power
- Graphics capable - 40 kpps@8°
- Max scan angle 40°
- Full colour mixing - analog modulation
- Extremely sharp intense beams – ca. 4 mm beam diameter and low divergence of 0.9 mrad

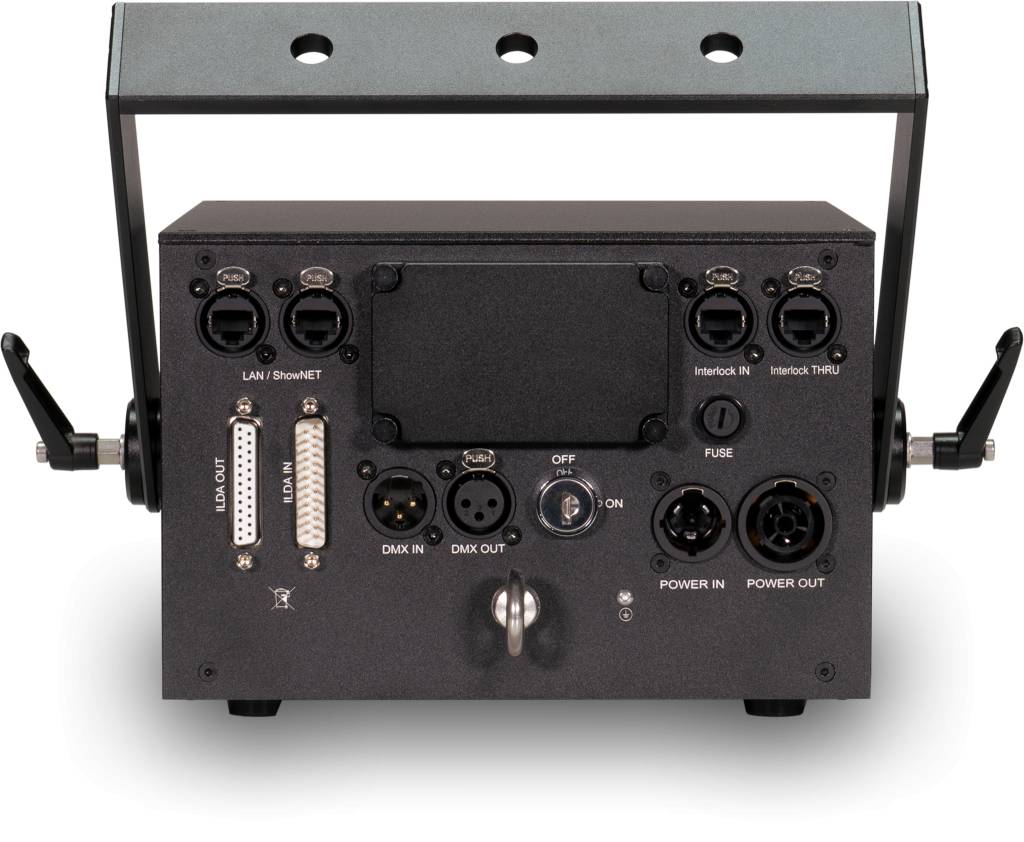

- Link multiple units with linking Power, DMX and ILDA
- Multiple control modes - Auto, DMX, Artnet and ILDA
- Pangolin FB4 Interface
STAND-ALONE MODE:The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX MODE:The laser can be controlled with a standard DMX controller or DMX software.
ArtNET Control mode
LAN MODE:The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA MODE:The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
FB4 INTEGRATED:The laser can be controlled through the integrated Pangolin FB4 board
GOBO WHEEL:Add awesome glass effects and gratings to the laser show with this additional effects wheel.
Via the internal FB4 interface, the Laserworld DS-3000RGB FB4 MK5 offers various control options, including DMX, ArtNet as well as direct computer control via network (QuickShow software or BEYOND software required).
But that's not all the Laserworld DS-3000RGB FB4 MK5 has to offer:
The Laserworld DS-3000RGB FB4 MK5 is an analog modulated, full-color RGB diode laser system with a guaranteed output power of 3'000 mW. The red laser source has an output power of 650 mW / 638 nm, the green of 900 mW / 520 nm and the royal-blue laser source has an output power of 1'600 mW / 450 nm. The diode laser sources provide strong laser beams. The projector has good beam specifications with a beam diameter of approximately ca. 4 mm and a beam divergence of 0.9 mrad. The galvo system has a scan speed of up to 40 kpps@8°.
There is no air circulation in the optical area, the temperature is regulated via the separate heat sink section. This reduces maintenance and cleaning work to a minimum.
The pre-stored effects and animations (from QuickShow - BEYOND) can be called up via DMX / ArtNet and adjusted live in color, position or with additional effects.
The Laserworld DS-3000RGB FB4 MK5 also offers direct computer control via Pangolin QuickShow or BEYOND. This allows you to project your own or pre-programmed laser shows, logos, texts or your own graphics and animations.

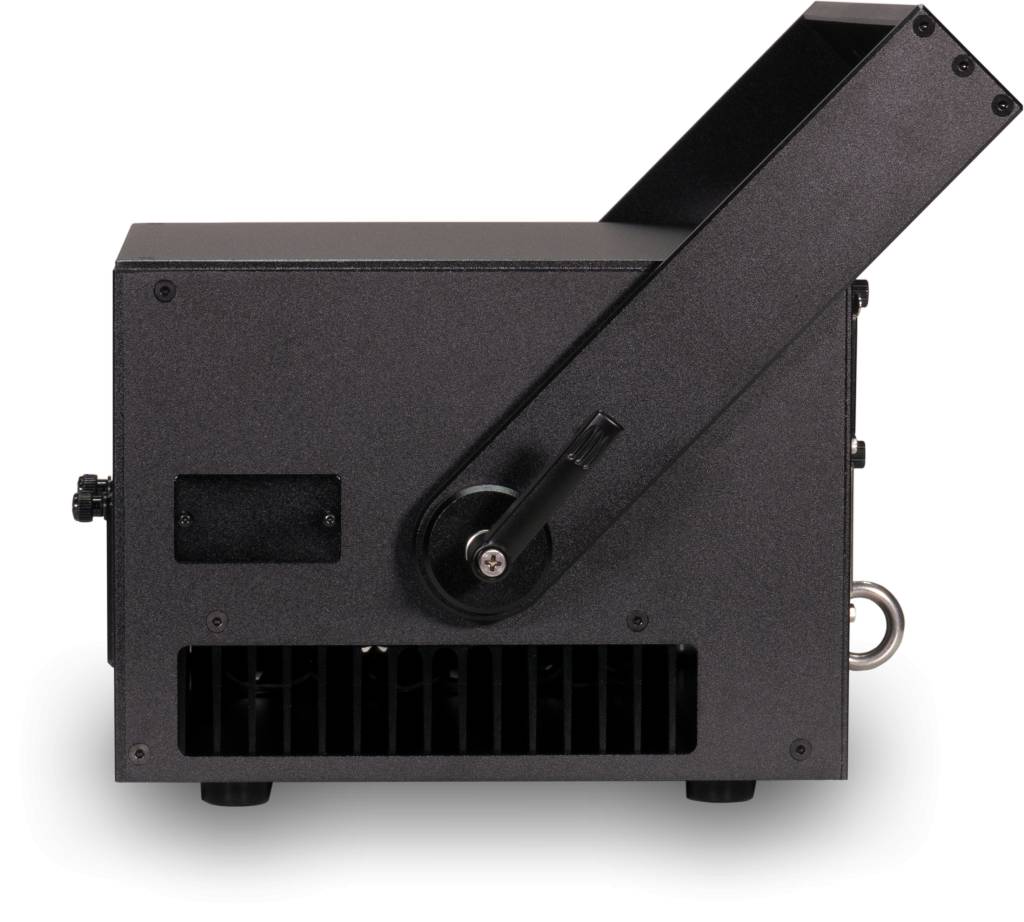

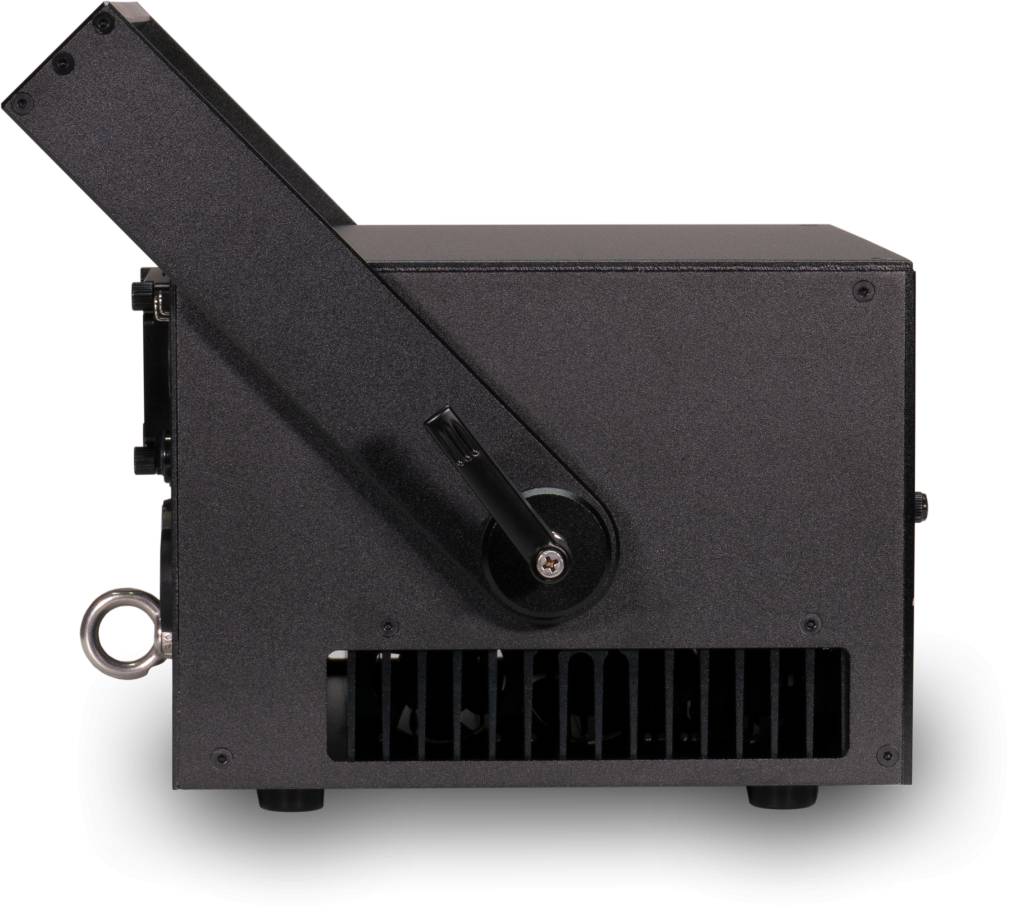

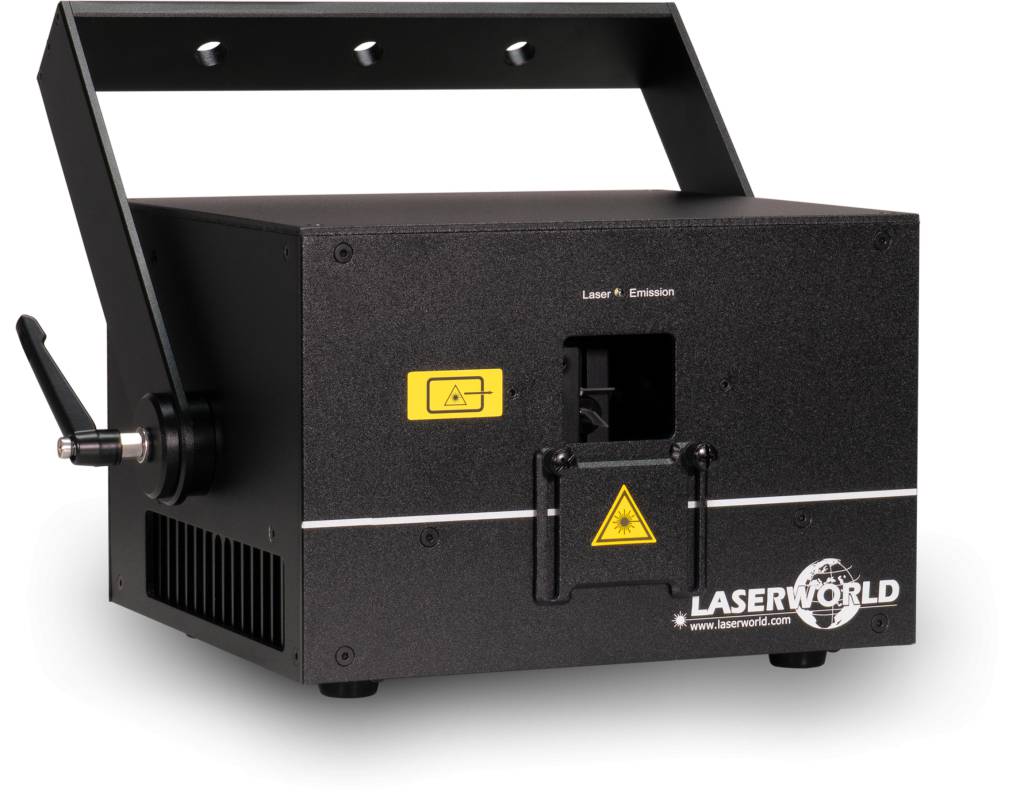

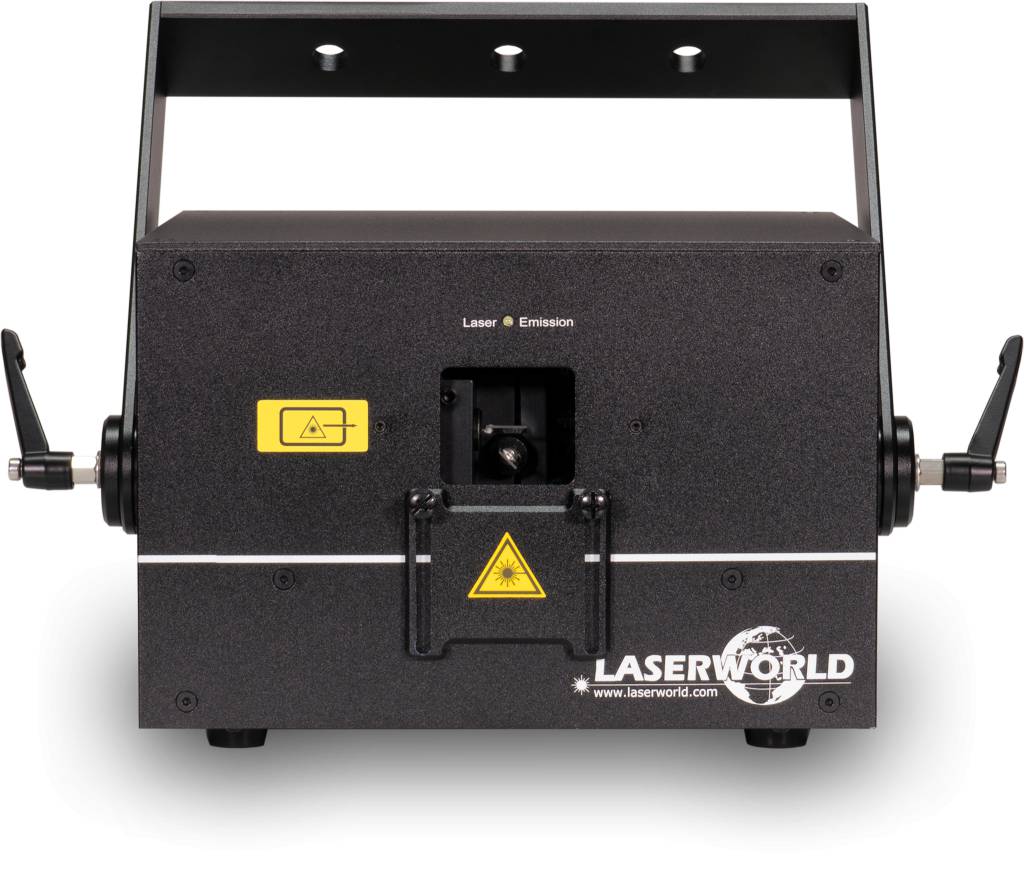

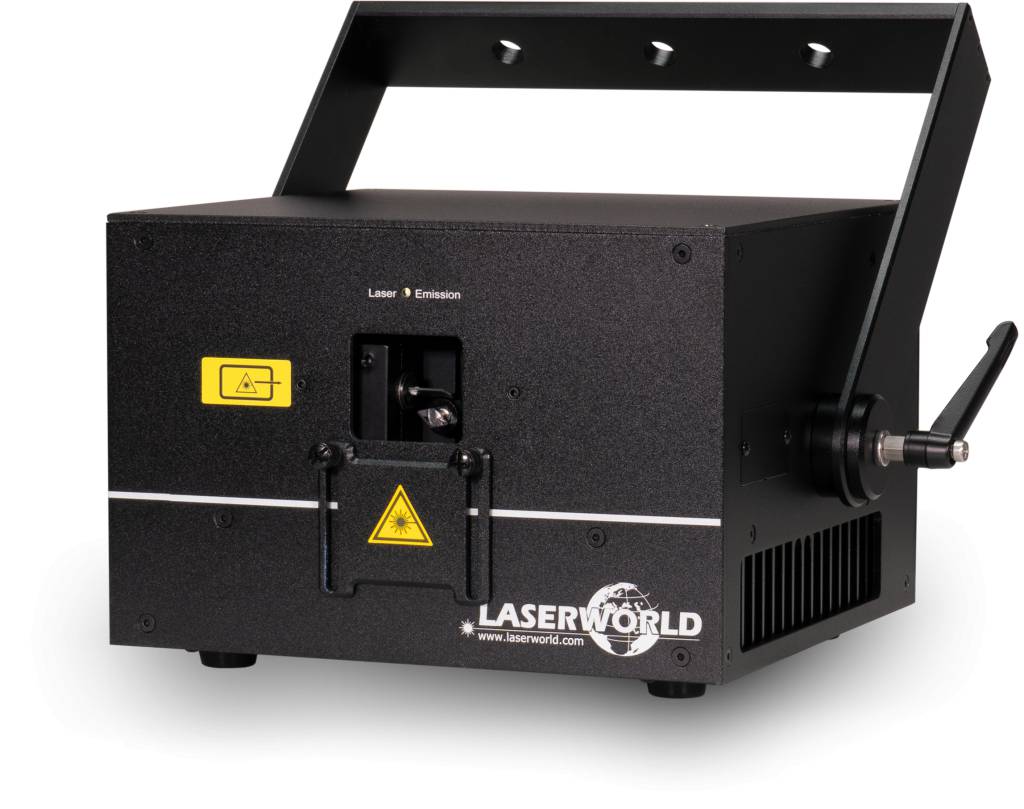

The Laserworld DS-3000RGB FB4 MK5 show laser projector comes with a compact housing that is lightweight and has a stable 360° bracket. The bracket allows various mounting positions: both hanging and standing installations are possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations on a truss or on the ceiling.
The Laserworld DS-3000RGB FB4 MK5 is ideal for semi-professional applications and is perfect for medium to large clubs and discotheques as well as for smaller stages and in any other party location.
> More details
Download Technical Datasheet
