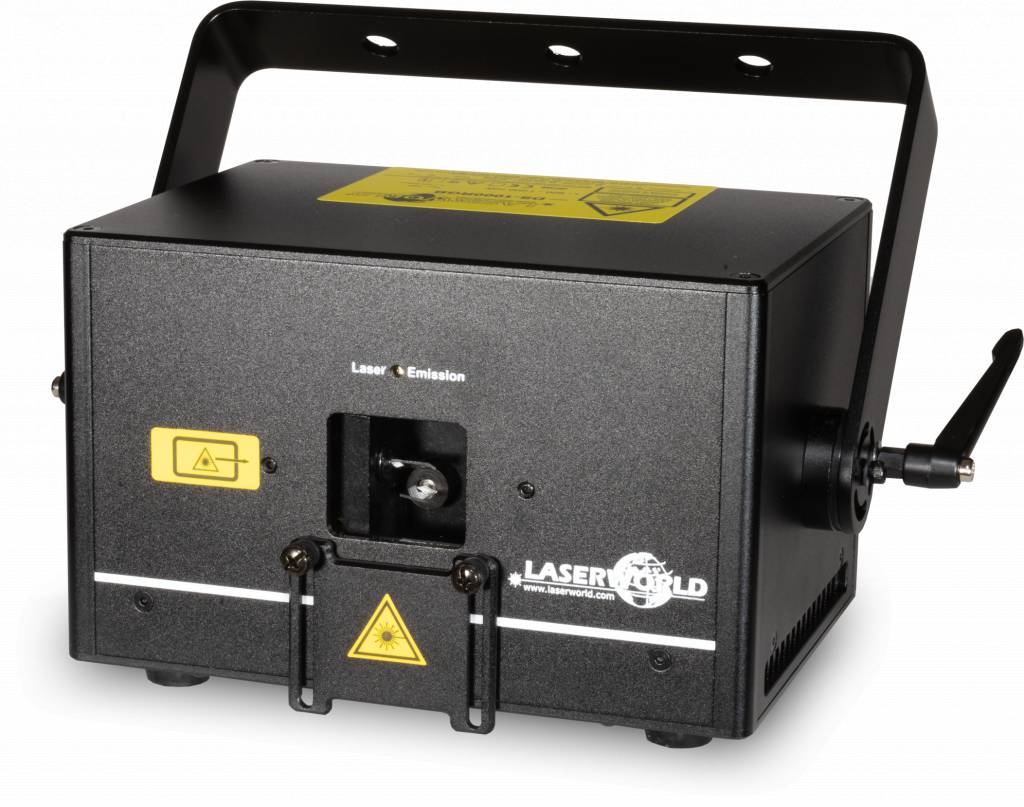

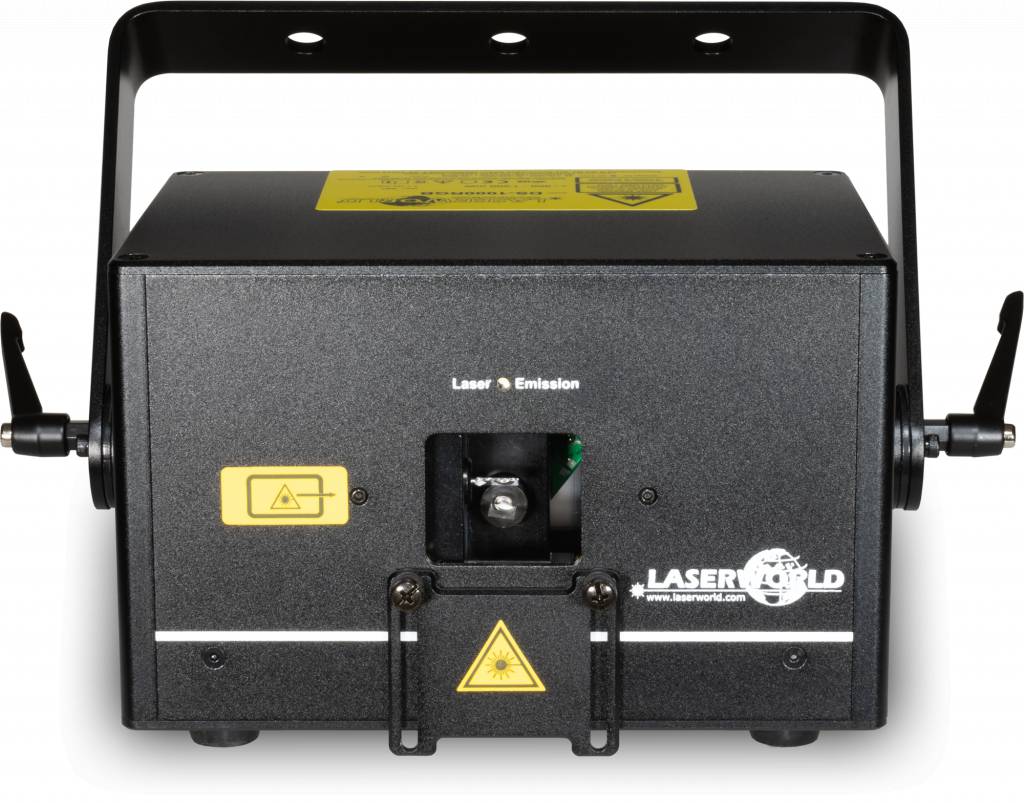

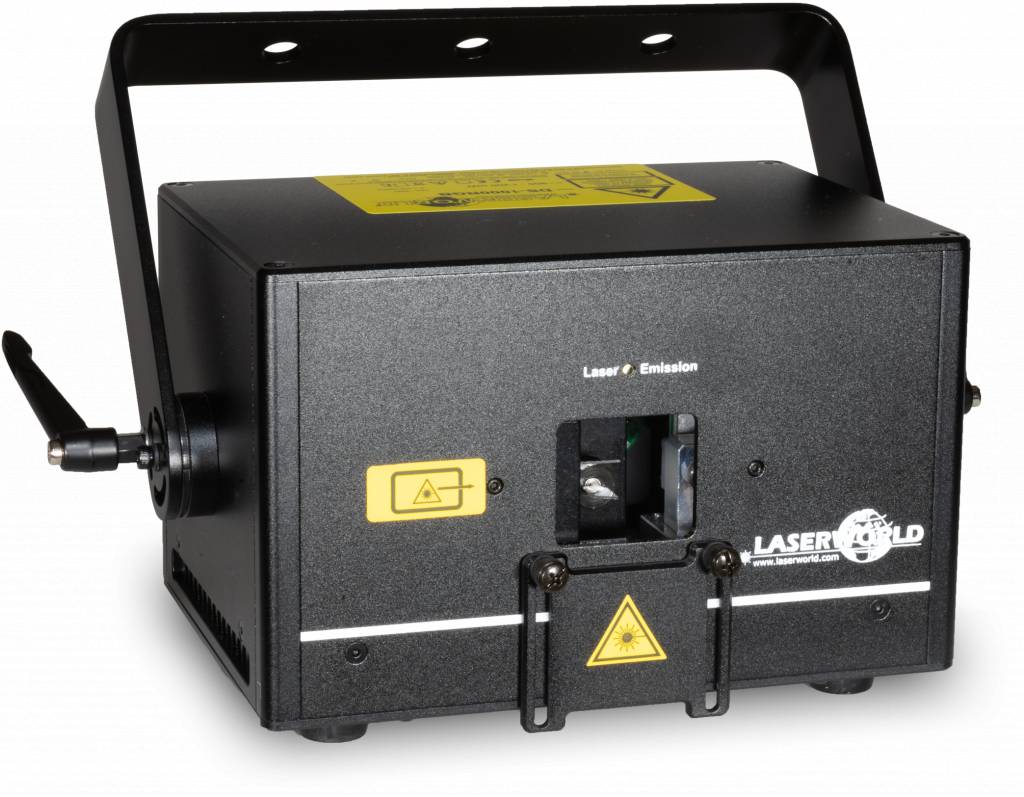

Laserworld DS-1000RGB MK4
- 1'000 mW guaranteed power
- Graphics capable - 40 kpps@8° ILDA
- Max scan angle 50°
- Full colour mixing - analog modulation
- Extremely sharp intense beams – 3mm beam diameter and low divergence of 0,9 mrad
- Save safety settings direct to the laser and they apply in all modes
- Link multiple units with linking Power, DMX and ILDA
- Free computer control software – Showeditor - upgradable to Showcontroller
- Multiple control modes - Auto, DMX, Artnet and ILDA

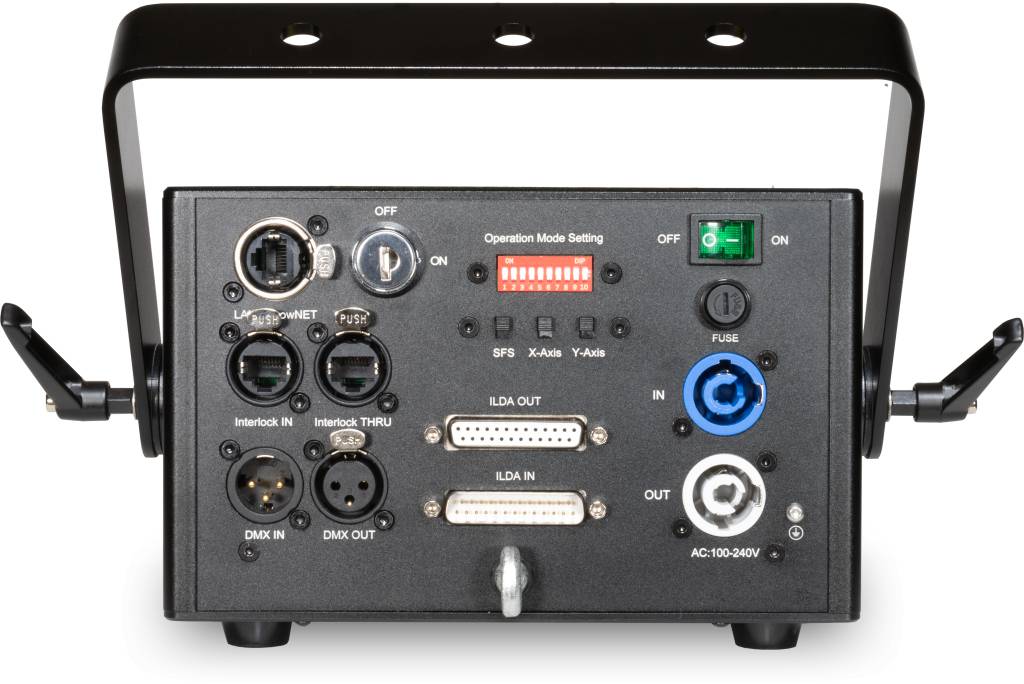

ShowNET mainboard as standard:
- Various control options: ILDA, Professional DMX (two modes), Professional Art-Net (two modes), Stand-Alone Operation, Master-Slave, ILDA Streaming Receiver, LAN (Computer control, integrated DAC)
- Create custom content, store it inside the laser and play it back in different modes
- Free laser show control software included
STAND-ALONE MODE:The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX MODE:The laser can be controlled with a standard DMX controller or DMX software.
ArtNET Control mode
MASTER-SLAVE MODE:One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN MODE:The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA MODE:The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA Streaming
SHOWNET INSIDE:The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
SHOWEDITOR INCLUDED:The full version of the laser show control software Showeditor is included in delivery.

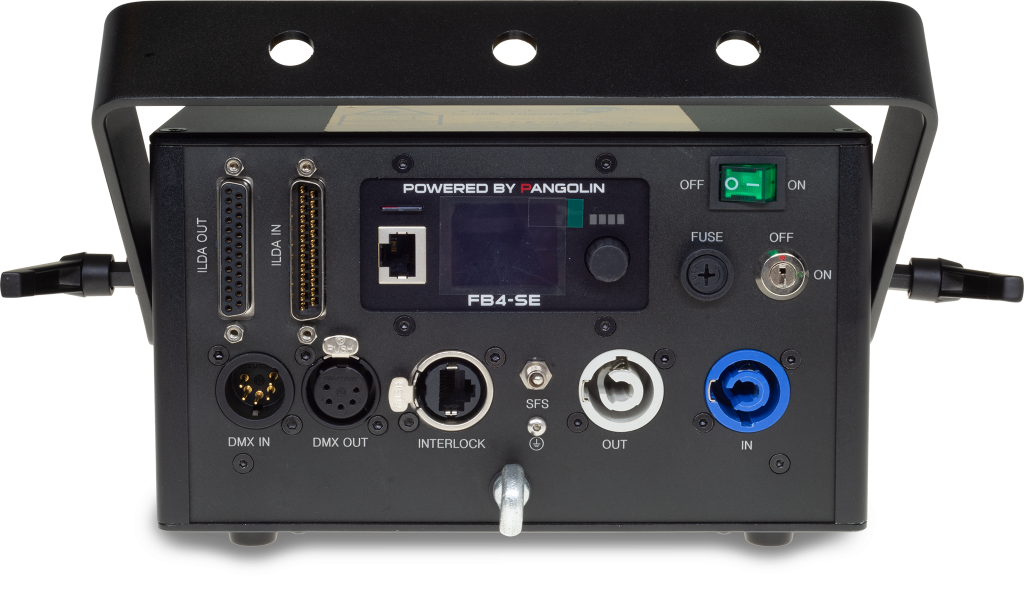

PANGOLIN FB4:Order your laser standard equipped with the Pangolin FB4 DAC. The FB4 substitutes the ShowNET mainboard, so features are limited to the ones of the FB4.
With the FB4 integrated, the laser can be directly controlled via Pangolin software.
GOBO WHEEL:Add awesome glass effects and gratings to the laser show with this additional effects wheel.
The Laserworld DS-1000RGB MK4 units have a built-in network DAC for Showcontroller and Showeditor, but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a built-in memory with pre-set patterns, that can be easily triggered through DMX, stand-alone mode.
The Laserworld DS-1000RGB MK4 comes with integrated ShowNET network interface and free laser show software (details in the box below)
Beginners as well as professionals use the Laserworld Diode Series units, as they are easy to use, versatile in their features and very compact and lightweight.
The Laserworld DS-1000RGB MK4 comes with 200 mW / 638 nm and uses green diode at 250 mW / 520 nm. The blue diode has 700 mW / 450 nm.
Beam specifications are at great ca. 3 mm / 0.9 mrad full angle and scanning can go as fast as 40 kpps@8° ILDA, whereas the scanners can scan a maximum angle of 50°.
With integrated and switchable scan safety.
The whole projector is built with Sealed Housing technology and thus maintenance intervals can be kept very low.
+ Integrated ShowNET incl. free laser show software
The Laserworld DS-1000RGB MK4 features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new Laserworld DS-1000RGB MK4 for free. The Showcontroller software is supported as well and can be purchased additionally.
The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via ArtNET. Custom frames and shows can be played back from an integrated SD card (included in delivery) – even in stand-alone mode!
There are two different DMX modes:
(1) DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming.
> More details
ShowNET Internal Control:
DMX Control
ArtNet Control
Automatic / Stand Alone
Master-Slave
ILDA Streaming
External ILDA Standard Control:
Analog ILDA
Optional control options (modification required!):
Optional control options require modifications to the general laser setup. Other operation modes or compatibilities may get lost.
Quickshow
Beyond
> More details
