TARM OUTDOOR - Weatherproof Climate Housing

TARM OUTDOOR - Weatherproof Climate Housing main image
Climate housing with heater and cooling function for tarm units.
  • climate housing for many laser systems of the tarm range
  • -5 to +50°C
  • Main unit IP 66, condenser/compressor unit IP 34
  • active AC unit
  • integrated heater

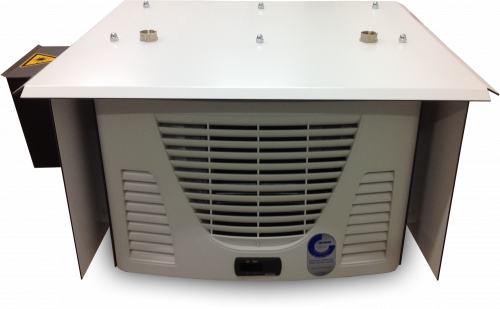

TARM OUTDOOR - Weatherproof Climate Housing additional image 1
TARM OUTDOOR - Weatherproof Climate Housing additional image 2
The tarm OUTDOOR system is a weatherproof climate housing according to IP 66. The condenser/compressor unit is rated IP 34. It is designed for cold as well as for hot surrounding temperatures in a range from -5°C up to +50°C

The tarm OUTDOOR system is suitable for many laser systems of the tarm Series.

The climate housing has an integrated temperature sensor which automatically starts the cooling function as soon as a certain temperature is exceeded. This ensures the optimal operating temperature of the laser system. In addition, the tarm OUTDOOR system protects against low temperatures (up to - 5°C) by activating an integrated heater at an ambient temperature of +10°C and below. This ensures the optimal operating temperature of the laser and prevents undercooling and damage to the laser as well as impact on output quality.

tarm OUTDOOR is suitable for the current range of tarm Systems:
tarm 3
tarm 6
tarm 11
tarm 22

*Please consult Laserworld for older model suitability



> More details

IP rating
IP66
Power Supply
230V AC - 50 Hz (60Hz version on inquiry)
Power Consumption
360W
Dimensions
70 x 42 x 67 cm (without splash guard) / 70 x 42 x 83 cm (with splash guard)
Weight
37 kg
EAN / MPN
TARMOUT
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
